Solar Panel Calculator
for Swamp Cooler

The mistake kills systems before they ever run. Someone buys 400 watts of panels, wires up a battery bank, and the second their swamp cooler kicks on — surge wattage craters the inverter. Game over before happy hour. Don't be that person.

Swamp coolers are deceptively hungry. A medium unit might pull 250 running watts, but at startup it can spike 3–5× that — 750 to 1,200 watts of surge for two to three seconds. Your inverter has to handle that hit without tripping. Size for surge first. Everything else follows.

The Math (Without the Headache)

Estimated Wattage vs. Required Battery Bank

The Night Drain Problem

Panels produce nothing after sunset, but the cooler runs all night. Your battery bank is your solar system after dark. Right-size it — accounting for real Depth of Discharge limits and actual run-time — and you wake up to a full charge by noon. Shortcut it, and you're running a generator by midnight.

Size for the worst day, not the average day. That's how you build a system that lasts.

Manual math gets people burned. Partial cloud cover, an aging battery losing capacity, an inverter running hot at 110°F in August in Phoenix — every variable compounds. Use our off-grid solar system sizing calculator and get a system spec you can trust before you spend a dollar on hardware.

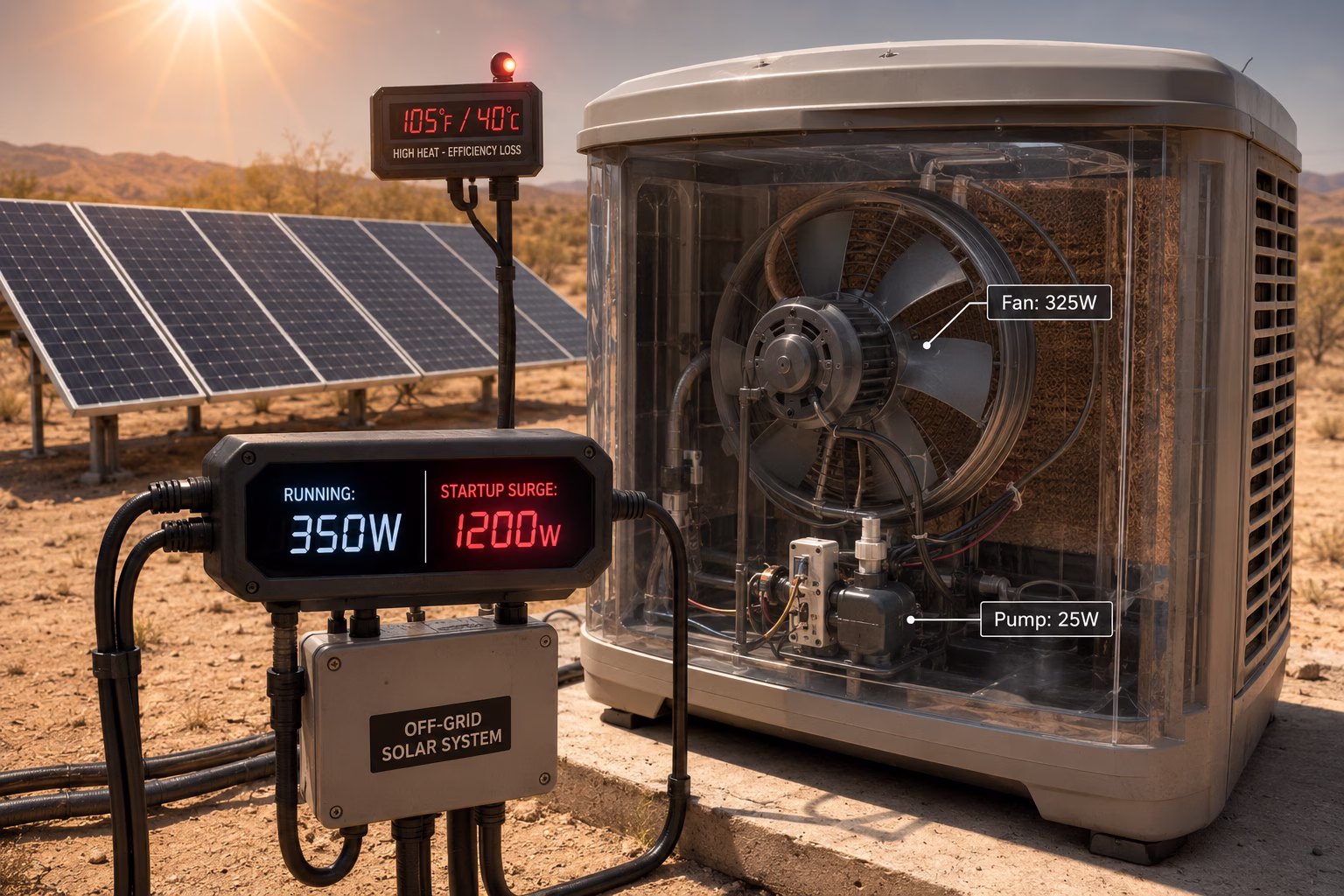

Most people google the wattage on the label and call it done. That number is wrong — or at least incomplete. A swamp cooler has two loads: the fan motor and the water pump. The pump is small (15–30W). The fan is where the real draw lives. But neither determines your inverter spec. That's the starting surge — the 2–5 second spike when the motor kicks on. A unit rated at 350 running watts can surge to 900–1,400W at startup. Undersize your inverter and you'll be resetting breakers instead of staying cool.

The Two Numbers You Actually Need

A portable unit pulling 150 running watts over 10 hours burns 1,500 Wh/day. A large residential cooler at 500W over 14 hours in a Phoenix summer? That's 7,000 Wh — nearly 7 kWh every single day.

Power Consumption vs. Solar Capacity

Assumes 6 peak sun hours/day and 85% inverter efficiency. Add 20–25% buffer for real-world losses.

Texas and High-Heat Climates Change Everything

In mild climates, a cooler might run 6–8 hours. In Central Texas or the Mojave, that same unit runs 12–16 hours — sometimes continuously overnight on battery. That changes your storage calculation dramatically. More run-time means larger battery banks, deeper discharge cycles, and a bigger solar array to recover by morning.

Panel efficiency also drops in extreme heat. At 95°F ambient, panels can lose 10–25% output compared to their rated spec. The irony of solar cooling: the days you need the most power are the days your panels underperform.

Instead of guessing, use our off-grid solar system sizing calculator to input your specific cooler's wattage and see your exact solar panel requirement.

Before you order a single panel, your roof needs a hard look. Swamp coolers are high-draw appliances — if your roof can't fit enough panels to cover that load, you'll be building an undersized system from day one.

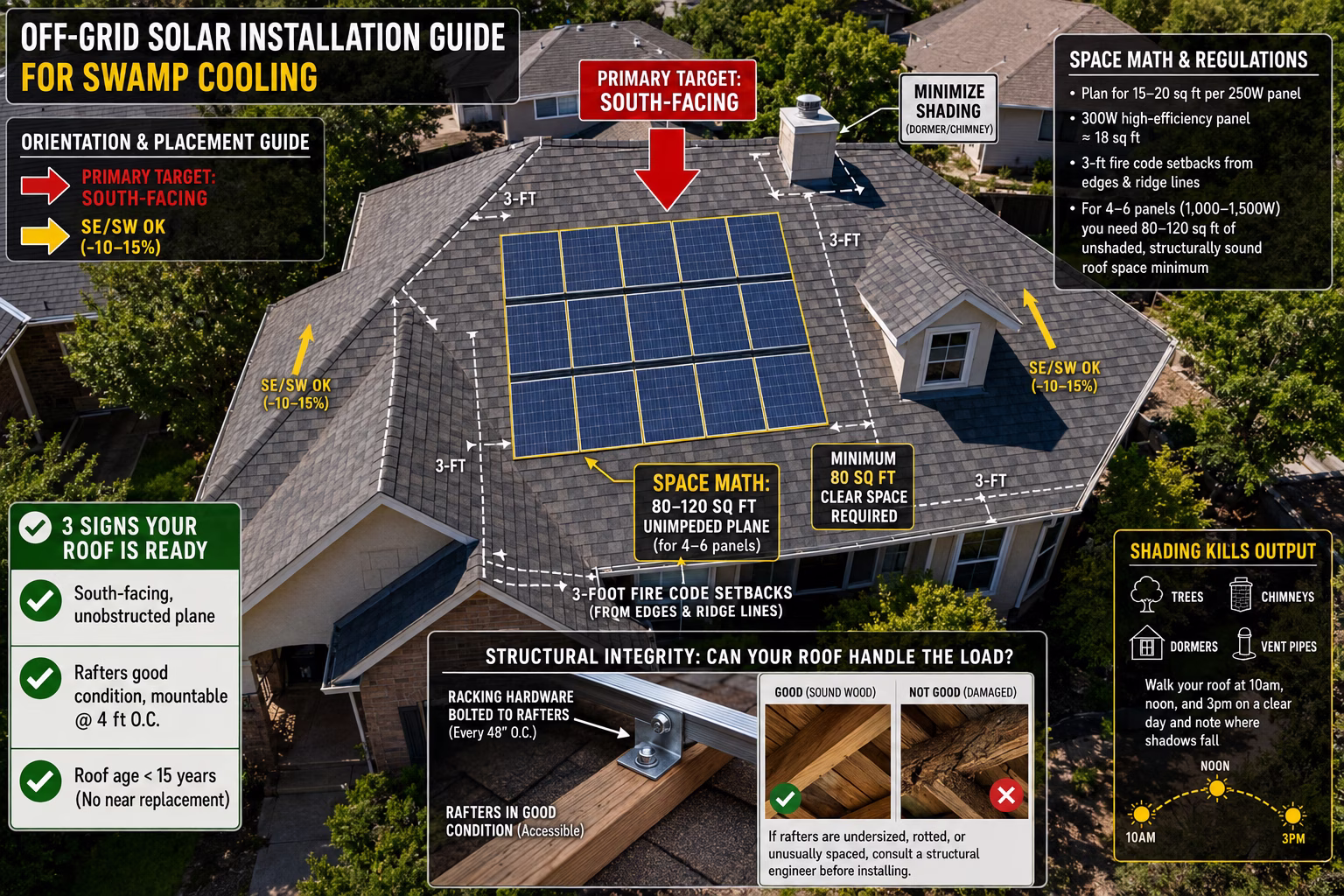

Orientation First, Everything Else Second

South-facing roof planes are your primary target in the Northern Hemisphere. Due South at a 15–40° pitch captures the most annual sun hours. Southeast and Southwest work too, with roughly 10–15% efficiency loss. Flat roofs are fine with adjustable tilt mounts.

What kills a system isn't the roof angle — it's the shading. Trees, chimneys, dormers, and neighboring structures all wreck panel efficiency during peak sun hours. A single shadow across one panel can drop an entire string's output. Walk your roof at 10am, noon, and 3pm on a clear day and note exactly where shadows fall.

The Space Math

Plan for 15–20 sq ft per 250W panel. A 300W high-efficiency panel runs closer to 18 sq ft. Most fire codes require 3-foot setbacks from roof edges and ridge lines — which alone can eliminate 30–40% of usable area on a standard hip roof.

For a residential swamp cooler needing 4–6 panels (1,000–1,500W of array), you need roughly 80–120 sq ft of unshaded, structurally sound roof space minimum.

Can Your Roof Handle the Load?

Racking hardware bolts through decking into rafters — typically every 48 inches on center. If rafters are undersized, rotted, or unusually spaced, you'll need a structural engineer's sign-off. A roof 20+ years old with soft spots? Get it inspected first.

In high-irradiance states like California and Texas, peak sun hours run 5.5–7 per day — every panel works harder. But the cooler also runs longer and harder, so wasting roof space on suboptimal placement costs real cooling capacity.

To get an accurate estimate, use our California solar calculator or USA solar calculator to input your roof dimensions and get a tailored plan.

1. The Math: Understanding Watt-Hours

List every load on your system. Add everything up, then multiply by 1.25 to account for inverter inefficiency and real-world losses. That final number is your daily Wh target — the figure every other calculation flows from.

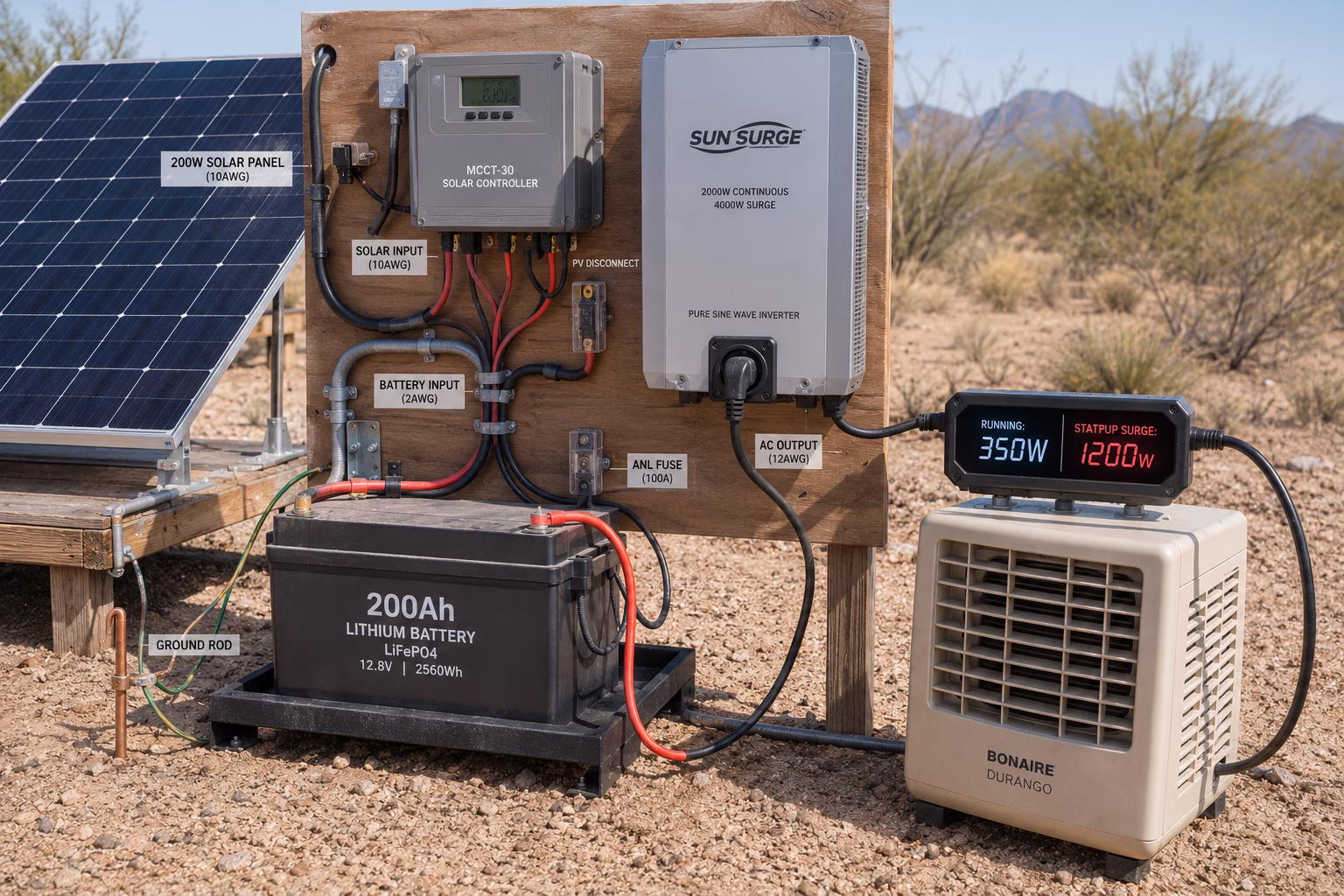

2. The Chain: Connecting Your Components

Each component is sized off the one before it. Wire them out of sequence or bypass a stage and you're creating a fault condition. Ground your system properly — panels, charge controller chassis, battery negative, inverter chassis — all to a single earth ground point. No exceptions.

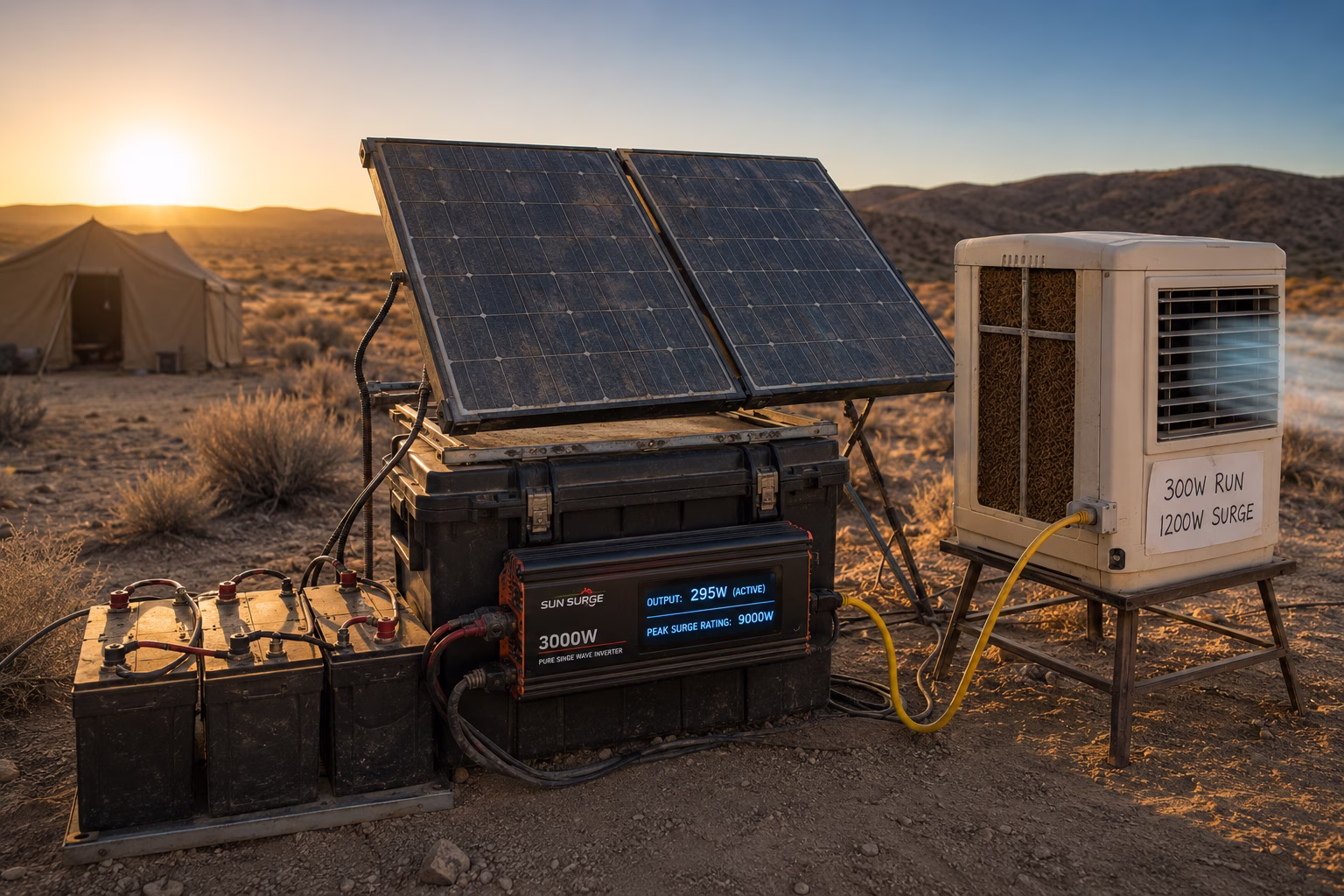

3. Why Sizing Matters

Your inverter has two numbers: continuous watts and peak/surge watts. A 2,000W continuous inverter might handle 4,000W surge for 5 seconds. That surge rating must exceed your highest-draw appliance's starting watts. A swamp cooler that runs at 350W can surge to 1,200W — an inverter sized only for running watts will trip the moment the motor kicks on.

Battery sizing follows the same logic: calculate daily Wh, divide by system voltage, then double it for lead-acid (50% DoD) or multiply by 1.25 for lithium (80% DoD).

Manual calculations are prone to errors that ruin battery banks. Use our off-grid solar system sizing calculator to handle the complex math and get a safe, balanced system spec in minutes.

The honest answer depends on three things: how long you run the cooler, your local utility rate, and whether you're on-grid or truly off-grid. Let's break it down.

On-Grid: The Numbers

A medium swamp cooler running 10 hrs/day at 300W consumes roughly 3 kWh/day — about 90 kWh/month. At the U.S. average of $0.16/kWh, that's ~$14/month or $168/year. A properly sized solar system for that load costs $800–$1,500 installed DIY. That's a 5–9 year payback if your only load is the cooler.

The monthly savings calculator can model your exact numbers with your utility rate and climate.

Off-Grid: A Different Calculation

Off-grid, solar isn't competing with a utility bill — it's competing with a generator. A propane generator running 10 hrs/day in a Phoenix summer burns roughly 1.5–2 gallons at $3.50/gal = $5–$7/day or $150–$210/month in fuel alone. A solar system with battery storage pays for itself in one summer season and runs silently for 10–25 years. Off-grid, solar wins every time.

The Federal Tax Credit Tip

The U.S. Federal Solar Investment Tax Credit (ITC) currently covers 30% of your system cost — including batteries. A $1,200 DIY system effectively costs $840 after the credit. That changes the math significantly. Consult your tax advisor to confirm eligibility.

Get your exact savings estimate and 2026 panel costs before budgeting your system.
