How Many Solar Panels Can I Fit on My Roof Safely?

You've got a kWh number from a solar calculator. Now comes the real question: does your roof have room for it?

This is where most online estimates fall apart. They tell you the system size you need, but never check it against your actual rooftop geometry.

Let's fix that with real math.

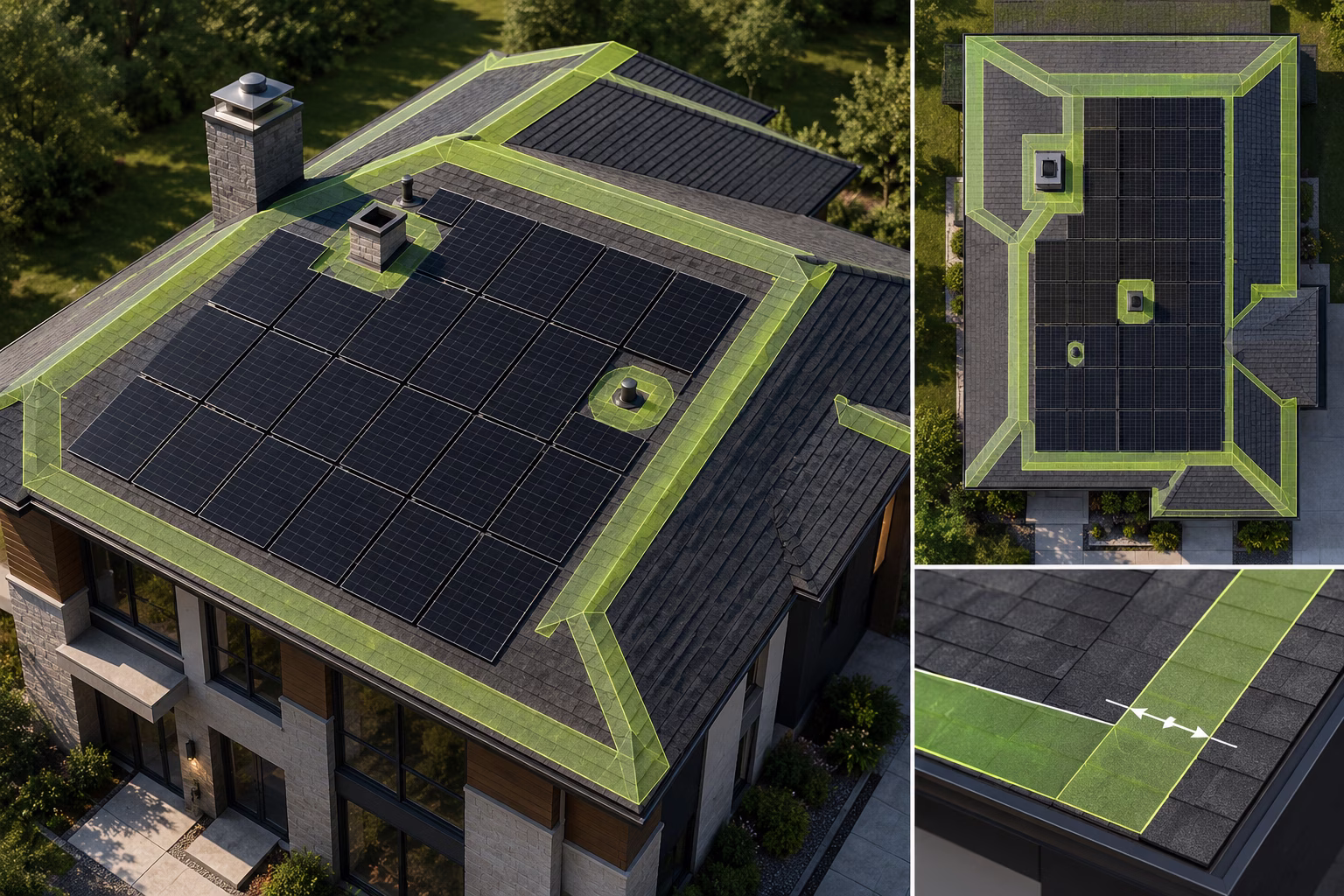

Figure 1: Residential roof blueprint showing mandatory 3-foot fire safety setbacks and panel spacing.

The 'Will It Fit?' Physical Roof Space Math Explained

A standard residential solar panel measures roughly 3.5 feet by 5.5 feet. That works out to about 17.5 to 19.5 square feet of physical space per panel, depending on the manufacturer.

That number tells you the raw square footage your array will physically occupy.

Here's a real example. Say your calculator recommended a 10kW system using 400-watt panels.

• Step 1: 10,000 watts ÷ 400 watts per panel = 25 panels
• Step 2: 25 panels × 17.5 sq ft = 437.5 sq ft of panel surface
• Step 3: Add usable roof buffer (explained below) to find your real footprint requirement

That third step is where homeowners get tripped up, because nobody fits panels edge-to-edge on a real roof.

You can't use 100% of your roof, even if the square footage technically adds up. Fire codes in most US jurisdictions require a 3-foot setback along roof edges, ridges, and hips for firefighter access during emergencies.

That clearance alone can eat 15–20% of a smaller roof's usable area.

Then there's the stuff you can't move. Chimneys, plumbing vents, skylights, and roof valleys all carve out dead zones where panels simply can't sit flush.

So when people ask how many solar panels will fit on my roof, the honest answer involves a second multiplier. A good rule of thumb: take your raw panel square footage and divide by 0.65 to 0.75 to estimate the actual roof area you'll need, accounting for setbacks and obstructions.

For our 10kW example, that's 437.5 sq ft ÷ 0.70 ≈ 625 sq ft of usable roof plane. That's how much roof space needed for solar panels really looks like once code requirements enter the picture.

Now let's talk production density, because square footage alone doesn't tell the full story.

A premium 400-watt panel, under standard US climate baselines with 5–6 peak sun hours, generates roughly 1.6 to 2 kWh per day per panel. Spread across its 17.5 sq ft footprint, that's about 0.09 to 0.11 kWh per square foot of solar panel per day.

Higher-efficiency panels push that density up without needing more roof space, which matters if your usable area is tight.

Finally, the structural question every homeowner quietly worries about: is my house good for solar panels?

A fully loaded panel with racking typically adds 3–4 pounds per square foot of dead load to your roof structure. Most homes built to modern residential code handle this without modification, since roofs are already engineered for snow loads far exceeding that weight.

The real flags to watch for are roofs over 20 years old, visible sagging in rafters, or older homes with undersized roof framing. A quick structural check from your installer, not a guess, settles this before you sign anything.

How Many Watts Will a Solar Panel Produce in Real Conditions?

The number printed on the back of your panel is a lie. Not a malicious one, just an optimistic lab result.

That label tells you how many watts in a solar panel under perfect, controlled conditions. Your roof isn't a lab.

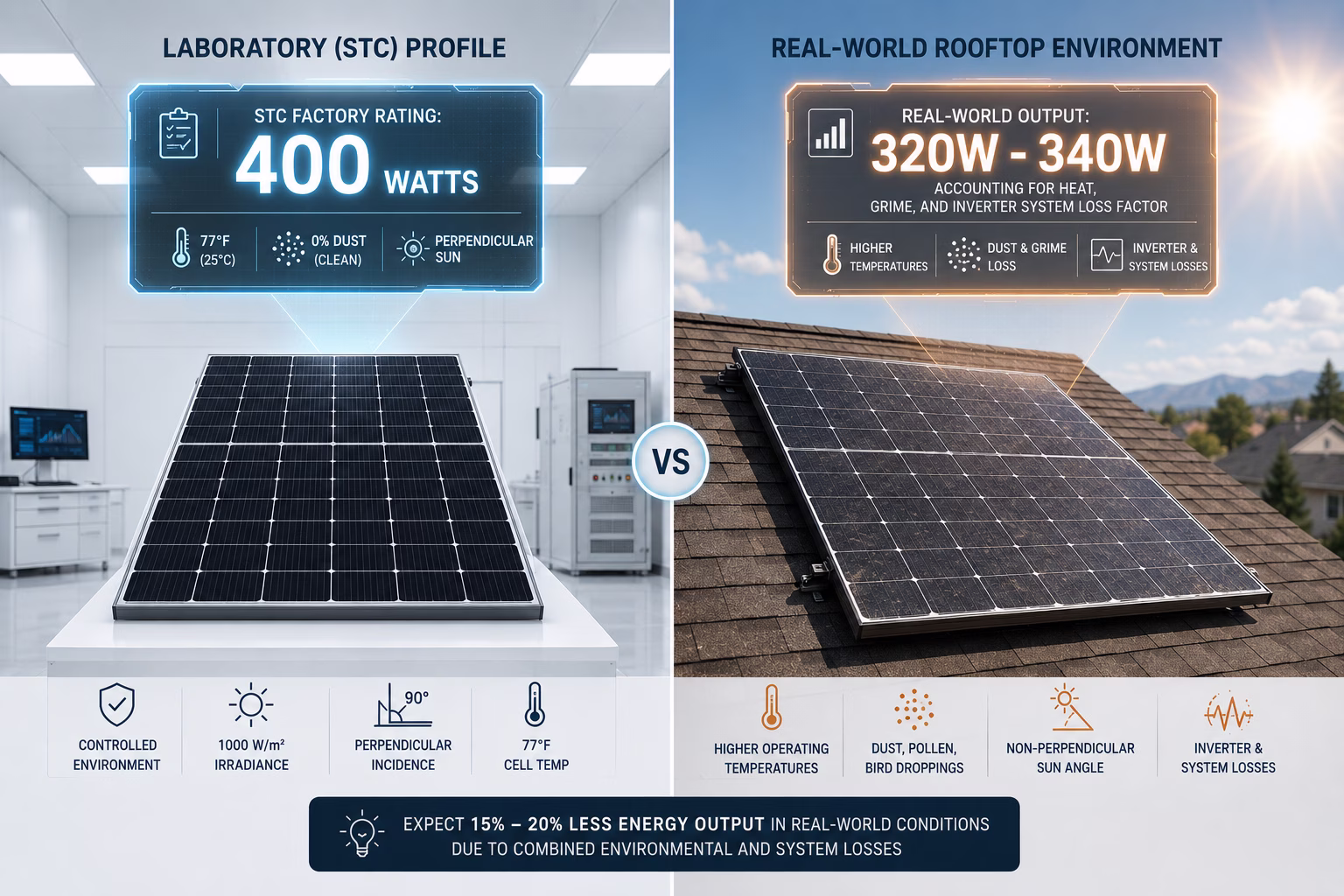

Figure 2: Comparison between standard test conditions (STC) factory ratings and real-world environmental power losses.

The Real-World Output Math vs. Factory Data Plates

That 400W rating comes from Standard Test Conditions, or STC. Think 77°F cell temperature, zero dust, and a perfectly perpendicular sun angle.

Your actual roof deals with heat, grime, shading, and inverter conversion losses. Stack those together and a "400-watt" panel typically delivers 80–85% of its rated output in real-world use.

So how many watts per solar panel do you actually get on a normal day? Somewhere between 320 and 340 watts of usable power, even though the box says 400.

This isn't a defect. It's physics, and every reputable installer accounts for it in their system sizing.

So how do I calculate solar panel output for an entire day, not just an instant wattage reading? You need one more variable: peak sun hours.

Here's the formula:

Let's run it. A 400W panel in a region with 5.5 peak sun hours (typical for much of the continental US):

400 × 5.5 × 0.85 = 1,870 Wh, or roughly 1.87 kWh per day.

That's how to compute solar panel output without needing an engineering degree. Three numbers, one multiplication.

Now the question everyone actually wants answered: how much can one solar panel power?

During peak sun hours, directly, a single panel can run small loads in real time. Once the sun dips, you're relying on whatever's stored in a battery instead.

Direct-use loads (lights, laptops, fans) work fine straight off the panel during daylight. Anything that needs to run at night, or has a high startup surge like a refrigerator compressor, needs a battery buffer sitting between the panel and the appliance.

One more thing worth knowing before you size a system: the panels themselves have gotten stronger. The residential market has shifted toward 400W to 440W panels as the new baseline, replacing the 250–300W panels that were standard a decade ago.

More watts per panel means fewer panels needed for the same system size, which directly affects how much of your roof actually gets used. If you're trying to gauge whether the math pencils out for your home, see solar panel cost in 2026 for current installed pricing.

How to Calculate Annual Energy Production from Solar Panels Without Complex Software

Professional solar engineers run your roof through expensive modeling software before they ever hand you a proposal. You don't need that software to get a number you can trust.

So how do engineers calculate solar potential for a building? They feed tools like PVWatts or Helioscope a stack of inputs: roof tilt angle, azimuth direction, shading from trees and nearby structures, and decades of historical weather data for your exact coordinates.

That software spits out an 8,760-hour simulation, one data point for every hour of the year.

You don't need 8,760 data points. You need three numbers and a calculator.

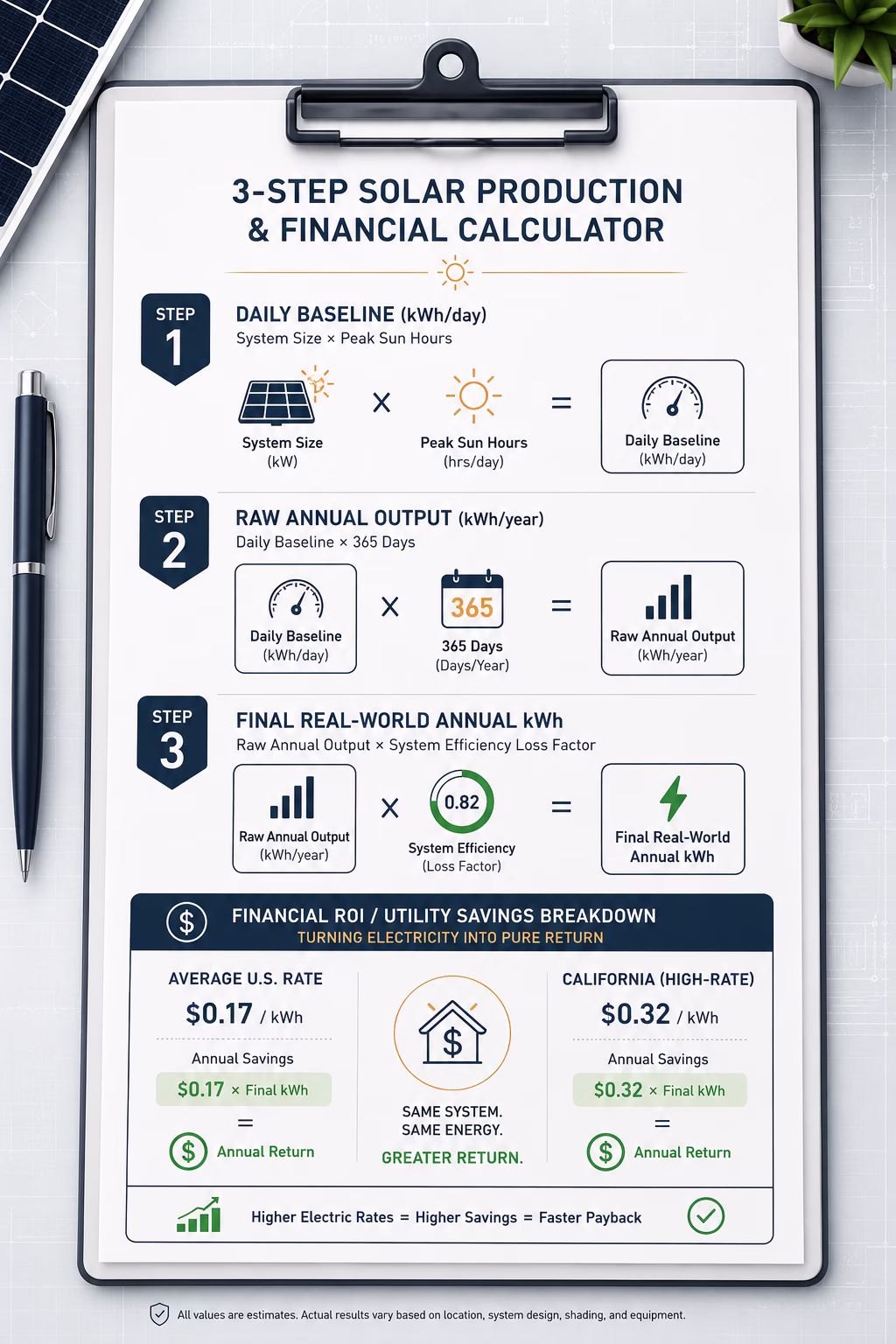

Figure 3: A simple 3-step manual workflow to estimate annual solar generation and utility dollar savings.

The Manual 3-Step Formula Used by Professional Installers

Every professional estimate boils down to the same core equation, just with the messy details smoothed into a single loss factor. Here's the formula installers actually use as their sanity check:

That 0.82 factor accounts for everything real-world: inverter conversion loss, wiring resistance, panel soiling, and heat-related efficiency drop. It's the same shortcut engineers use to spot-check their software output.

Let's run real numbers. Say you're sizing a 10kW system in an average US state with 4.5 peak sun hours per day.

That 13,468 kWh figure is your 95%-accurate estimate of how to calculate annual energy production from solar panels, no software license required.

Compare that against your last 12 months of utility bills. If your household burns through roughly 12,000–14,000 kWh a year, a 10kW system in this sun zone covers nearly all of it.

Now the part that actually matters to your wallet: how to calculate solar energy savings.

Take that annual kWh number and multiply it by your local utility rate per kWh.

At a national average of $0.17/kWh, that 13,468 kWh translates to roughly $2,289 in annual savings.

States with higher rates change this fast. Run that same 13,468 kWh figure at California's average of $0.32/kWh, and you're looking at over $4,300 a year wiped off your electric bill.

This is also the number that determines your payback timeline. Divide your total installed system cost by this annual savings figure, and you get the exact year your panels stop being an expense and start being pure return.

A $24,000 system divided by $2,289 in yearly savings pays for itself in roughly 10.5 years. Push that same system into a high-rate state, and the timeline can drop below 6 years.

Run your own utility rate through this same three-step math, and you'll have a number more grounded than most online calculators provide, built from your actual sun hours and your actual electric bill. Curious whether the long-term math actually favors your situation?

How to Calculate Solar Panel Battery and Inverter Sizing for Off-Grid Systems

Every off-grid build starts with the same question: what size off grid solar system do I need? The answer isn't on a spec sheet. It's in your own daily energy habits.

Grab a notepad and list every appliance you'll run: lights, fridge, water pump, laptop, fan. Write down the wattage of each, multiply by hours used per day, and add it all up.

That total is your daily watt-hour load. Everything else, panels, battery, inverter, gets sized off this one number.

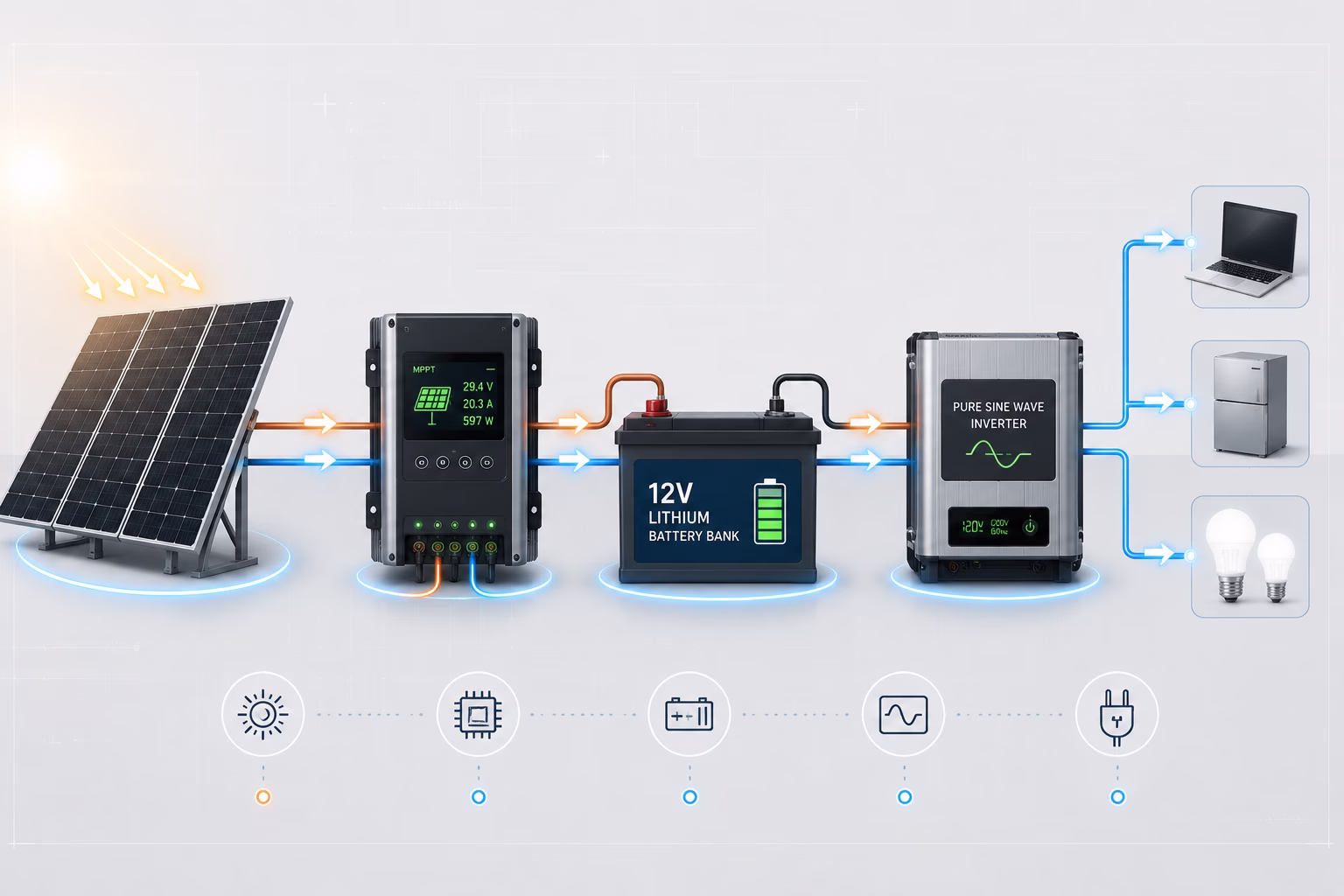

Figure 4: Complete off-grid system schematic displaying power flow from solar modules to household appliances.

The Battery, Inverter, and Charge Math for Cabins and RVs

Say your daily load comes out to 2,500 Wh. Now you build backward from there.

Here's how to calculate solar panel battery and inverter sizes as a matched set, not separate guesses:

That autonomy multiplier is what separates a system that survives a three-day storm from one that leaves you in the dark on day two.

Now the panel side. How to calculate solar panel size for battery charging comes down to matching your array output to your battery's appetite.

Say you're running a 200Ah lithium battery at 12V, which equals 2,400 Wh of total capacity. You need enough panel wattage to refill that during your available daylight window, not just trickle it in.

A 400W panel array, under 5 peak sun hours, produces roughly 1,600–1,700 Wh per day after real-world losses. That's solid for daily top-offs but slow if you're recovering from a full drain.

Which brings up the next piece every builder needs: how to calculate charging time of battery by solar panel. Here's the formula:

Run it on that 200Ah lithium bank: 2,400 Wh ÷ (400W × 0.8) = 2,400 ÷ 320 = 7.5 hours of full sun to charge from empty.

Since you rarely get 7.5 hours of true peak sun in a single day, this is exactly why off-gridders oversize panels relative to "average" daily use.

RVs complicate this further. If you're searching how much solar do I need for my RV calculator, the math is identical, but your constraint shifts.

A cabin roof can absorb 8–10 panels without blinking. An RV roof, fighting AC units, vents, and antennas, often caps out at 3–4 panels before you run out of physical space.

RVs typically lean harder on lithium batteries specifically because of weight and space, squeezing more usable Wh into a smaller footprint than a cabin ever needs to worry about. For a dedicated breakdown by vehicle type.
