Solar Panel Angle Calculator: The Complete Guide to Maximizing Your Solar Energy Output

Most people focus heavily on choosing the right solar panels and inverters — but they sometimes overlook one of the most critical factors that directly affects how much electricity their system actually produces: the solar panel tilt angle. Getting this detail right can boost solar energy production by 20% to 40%, depending on location and season. That is a significant jump, and it does not cost a single extra dollar once the system is installed correctly.

A solar panel angle calculator takes the guesswork out of the equation entirely. Whether someone is setting up rooftop solar on their home in Denver, installing panels for a cross-country RV trip, or building a tiny home with a compact off-grid solar setup — there is a reliable, math-backed way to find the ideal tilt. This guide walks through everything, from the basic solar panel tilt angle formula explained in plain language, to seasonal adjustments, city-by-city angle data, and specialized tools for different applications.

1. What Is Solar Panel Tilt Angle and Why Does It Matter?

Solar panel tilt angle is the angle formed between the surface of a solar panel and the flat ground beneath it. A panel lying completely flat has a 0-degree angle. A panel standing perfectly upright has a 90-degree angle. In practice, the ideal solar panel inclination falls somewhere between these two extremes — and that sweet spot depends almost entirely on geographic location and time of year.

Here is why solar panel angle affects output so significantly: the sun does not sit at the same position in the sky all year. In summer, the sun arcs high above the horizon, so panels need a lower tilt to catch it directly. In winter, the sun hugs closer to the horizon, so panels need a steeper tilt. A panel set at the wrong angle catches sunlight obliquely — and oblique angles mean less energy absorbed per square meter of panel surface.

The physics is simple. When sunlight strikes a panel at a 90-degree angle — perfectly perpendicular — the full intensity of that light gets absorbed. As the angle deviates, the effective area exposed to direct light shrinks, and solar energy output drops accordingly. This is why solar panel efficiency angle matters so much and why tools like an optimal solar panel tilt angle calculator exist. To understand how angle ties into overall system sizing, see our Solar Calculator for California Home.

2. How to Calculate Solar Panel Tilt Angle

There are a few different approaches to figuring out the ideal tilt — ranging from a simple rule-of-thumb formula to more precise seasonal calculations. Knowing how to calculate solar panel angle manually is useful, even if a solar panel alignment calculator handles the math automatically.

The Basic Formula: Latitude Minus 2.5 Degrees

For a year-round, fixed solar panel angle, the simplest and most widely used approach is to subtract 2.5 degrees from the location's latitude. This gives a solid baseline for solar panel tilt that works reasonably well across all seasons without any adjustments.

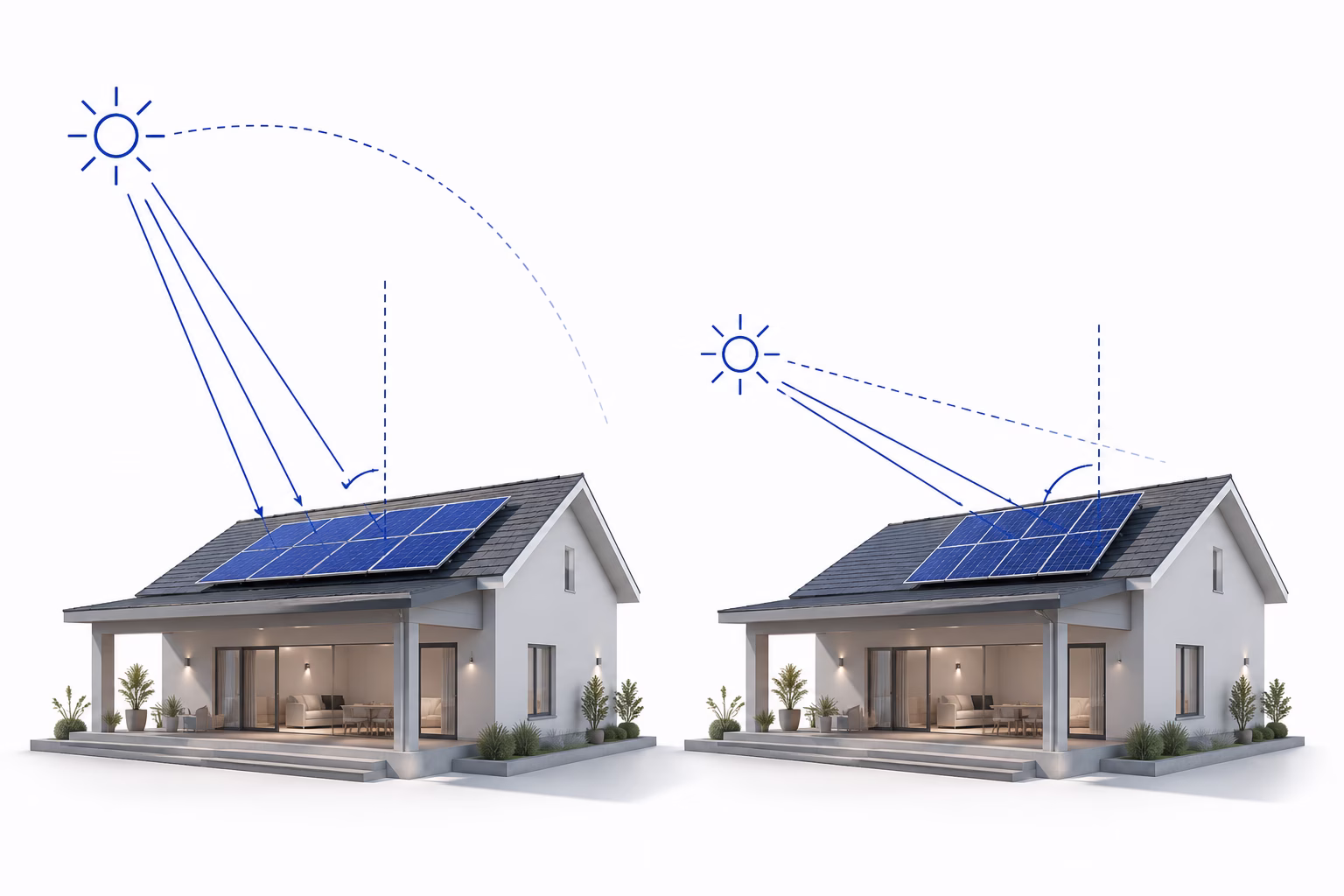

Seasonal Tilt Angle Formulas (Northern Hemisphere)

For homeowners or installers willing to adjust the angle twice a year — or more — the solar panel seasonal tilt calculator approach delivers noticeably better results. Here are the standard formulas for the Northern Hemisphere, which covers all of the continental United States:

Using Chicago again as an example: the best solar panel angle for winter in Chicago works out to approximately (41.85 × 0.9) + 29 = 66.7 degrees — a steep angle that helps panels catch low winter sun. The summer angle comes out to (41.85 × 0.9) − 23.5 = 14.2 degrees, a much shallower tilt suited for the high summer sun.

3. Solar Panel Angle by Location: ZIP Code & Latitude Calculator

Solar Panel Angle Calculator by ZIP Code

One of the most practical tools available is the solar panel angle calculator by zip code. Instead of manually looking up latitude and running calculations, users simply enter their ZIP code and receive an instant readout of their optimal angle — both for year-round use and seasonal adjustment. This kind of solar panel angle calculator with location data built in removes nearly all friction from the process.

ZIP code-based tools are especially popular because they account for the subtle differences between cities within the same state. Los Angeles and San Francisco are both in California, but their latitudes differ enough to produce different solar panel angle by zip code results. A location-based lookup catches these differences automatically. Use our Solar Calculator for instant, location-specific results.

Solar Panel Angle by Latitude Calculator

For anyone who prefers a more technical approach, the solar panel angle by latitude calculator is the go-to method. Latitude is the foundation of every tilt angle calculation, and any reliable solar panel azimuth and tilt calculator uses it as the primary input. The latitude based solar angle relationship is consistent and predictable — which is what makes the formula approach so reliable.

The latitude-based approach is particularly useful for international users or for RV travelers who move between very different latitudes and need to recalculate their optimal angle frequently. For RV-specific guidance, visit our RV Solar Calculator.

4. Best Tilt Angle for Solar Panels in the USA — City-by-City Data

The best tilt angle for solar panels in USA varies considerably from the southern tip of Florida to the Pacific Northwest. The following solar panel tilt angle chart USA provides a quick reference for 30 major cities, covering year-round, summer, and winter angles.

A few clear patterns stand out when reviewing this solar panel tilt angle chart USA. Cities in the Deep South — like Houston, New Orleans, and Jacksonville — have relatively low year-round angles, reflecting their proximity to the equator. Northern cities like Seattle, Minneapolis, and Portland sit at steeper angles. This latitude based solar angle relationship is consistent and predictable across the entire country.

The best angle for rooftop solar panels in Seattle is 34.6 degrees year-round, rising to 49.6 degrees in winter. In Phoenix, those numbers drop to 28.5 and 43.5 respectively. Any ideal solar panel roof angle calculator will reflect these same geographic differences. For Texas-specific guidance, see our Solar Calculator for Texas Home.

5. Solar Panel Direction and Angle: Getting Both Right

A solar panel direction and tilt calculator addresses both variables together because they work as a pair. Direction without correct tilt — or tilt without correct direction — leaves performance on the table.

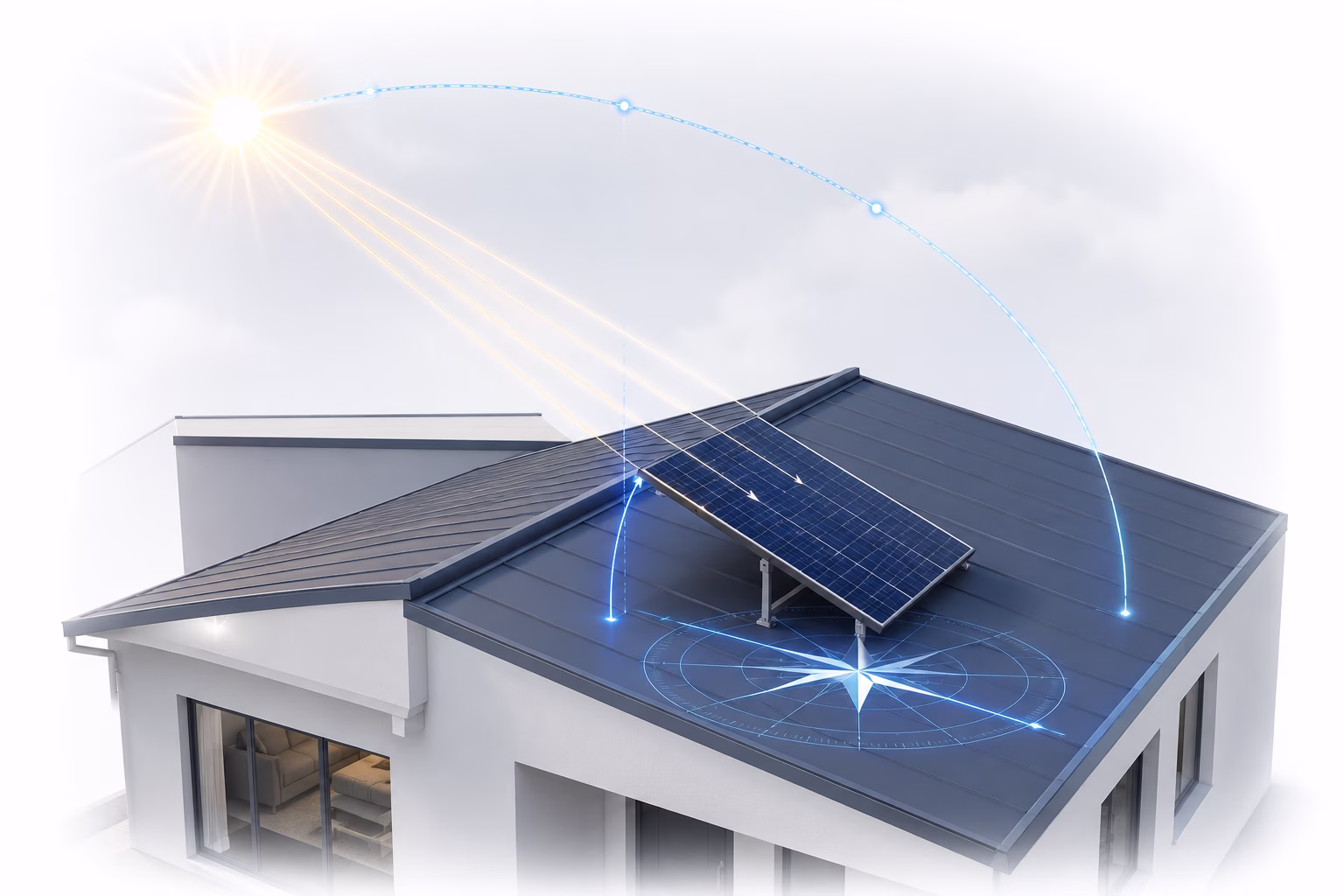

The Role of Solar Panel Azimuth

Solar panel azimuth refers to the compass direction the panels face. For locations in the Northern Hemisphere, true south is the ideal direction because it maximizes the number of daylight hours during which the panel faces the sun. True south and magnetic south are slightly different due to magnetic declination, and a quality solar panel azimuth and tilt calculator accounts for this automatically.

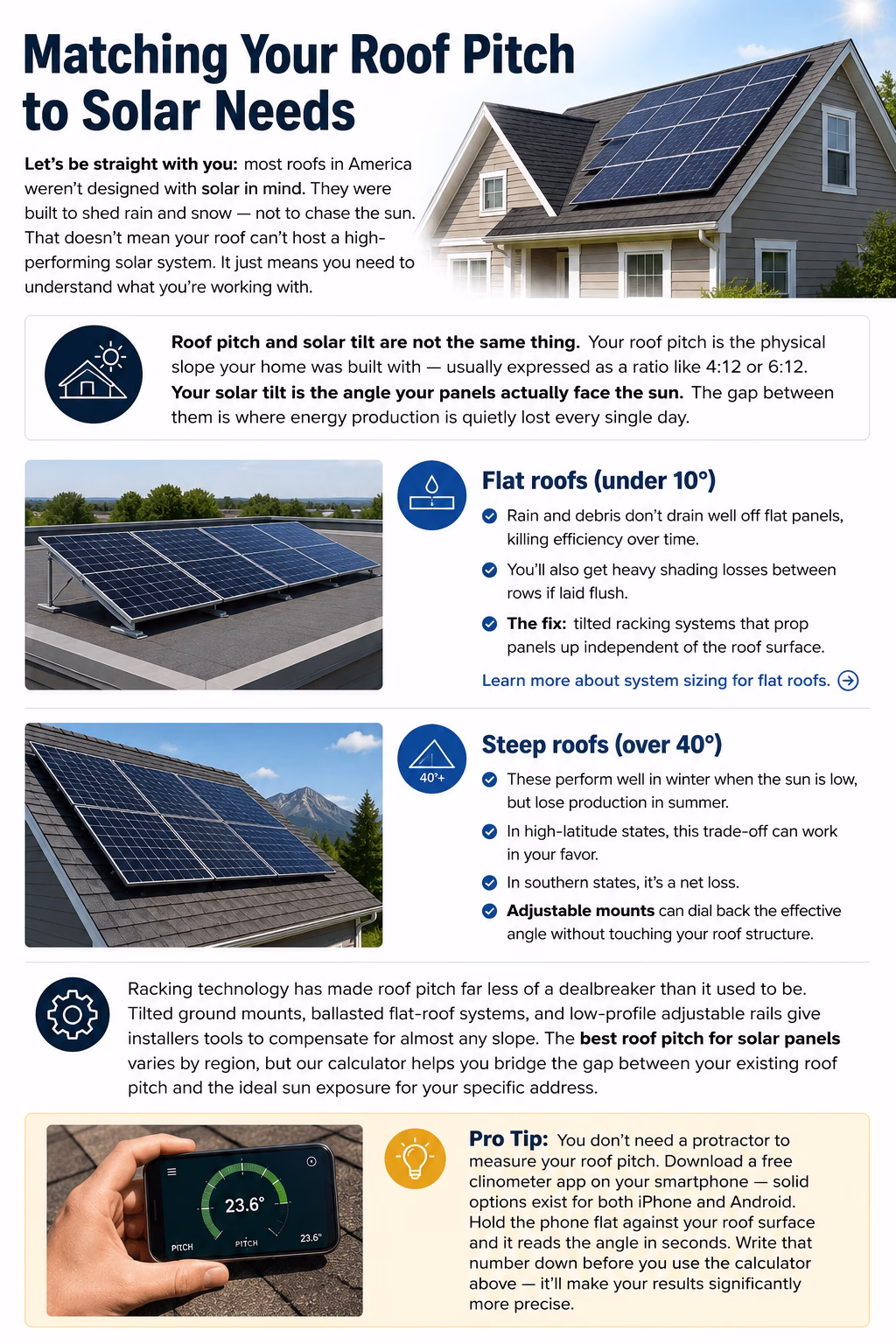

Rooftop Solar Angle Considerations

For rooftop solar installation, the roof's existing pitch usually sets the starting point. Many residential roofs fall in the range of 15 to 40 degrees of slope, which overlaps nicely with the optimal solar panel tilt angle for most US locations. When the roof pitch closely matches the ideal tilt, flush-mount racking systems are simple, cost-effective, and aerodynamically sound.

For ongoing performance monitoring after installation, see our Smart Monitoring Solutions. And for rooftop maintenance tips, review the Solar Maintenance Guide.

6. Fixed vs. Adjustable Solar Panel Angle: Which Approach Wins?

Fixed Solar Panel Angle

A fixed solar panel angle is the most common setup for residential rooftop systems. Once installed, the panels stay at one angle year-round. The fixed solar panel angle calculator approach uses the year-round average — typically latitude minus 2.5 degrees — to find a single value that performs reasonably well in every season without ever requiring adjustment.

Fixed systems are simpler, cheaper to install, and require less maintenance. The tradeoff is that they are never perfectly optimized for any single season.

Adjustable Solar Panel Mount

An adjustable solar panel mount lets the owner change the panel angle seasonally or monthly. The solar panel angle adjustment guide for this type of setup involves two main adjustments per year: one in spring to lower the angle for summer, and one in fall to steepen it for winter.

Research consistently shows that seasonal solar tilt adjustment can improve annual output by 5% to 10% compared to a fixed year-round angle. The adjustable solar panel angle calculator tools make this process completely straightforward — users enter their location and desired adjustment frequency, and the tool outputs the specific angles to use for each period.

To understand how fixed vs. adjustable systems affect overall ROI, use our Monthly Savings Calculator.

7. RV, Camping, Tiny Homes & Off-Grid Applications

RV Solar Panel Angle Calculator

RV solar is a unique challenge because the vehicle moves. A solar panel angle calculator for RV use needs to be flexible — the optimal angle in Florida during January is very different from the angle needed in Montana in July. Most RV owners compromise by setting panels at a moderate fixed angle that works adequately across a range of latitudes, but those willing to adjust at each stop can squeeze significantly more power from their setup. Our RV Solar Calculator is built specifically for this.

Solar Panel Angle for Camping Setups

The solar panel angle calculator for camping applies similar logic to portable solar systems used at campsites. Foldable solar panels with adjustable legs allow users to set angles quickly. Campers who spend extended time at one location can use a solar angle calculator online to find the right tilt for that specific spot and maximize their sunlight exposure.

Solar Panel Angle for Off-Grid Systems

Off-grid solar setup demands more careful attention to solar panel angle optimization than grid-tied residential systems. When there is no utility grid to pull from on low-production days, every degree of tilt optimization counts. A solar panel angle calculator for off grid systems typically incorporates battery storage sizing and load calculations alongside tilt angle recommendations to give a complete picture of system performance.

The solar panel angle for off grid systems should prioritize the season with the lowest solar exposure — which is winter for most of the continental US. Since an off-grid home needs to meet its own power needs even on the worst production days, tilting more steeply for winter performance is often the smart call, even if it means slightly lower summer output. See our Solar Calculator for Off Grid Cabin for full off-grid sizing guidance.

Solar Panel Angle for Tiny Homes

The solar panel angle calculator for tiny homes shares much with off-grid calculations, since tiny homes frequently operate fully or partially off-grid. The smaller roof area means each panel needs to work as hard as possible. Optimal solar panel tilt for home applications like this often means using adjustable mounts to track seasonal changes, since the compact footprint limits how many panels can be installed.

The solar panel angle for tiny homes calculation is no different mathematically — it still comes down to latitude and season. But tiny home owners sometimes opt for ground-mounted panels adjacent to the structure to gain more flexibility over solar panel positioning and angle than a fixed roof mount allows. For smaller setups, also check our Solar Calculator for Small House.

Solar Panel Angle for Vans

Van life solar setups face the same core challenges as RV systems, with an added twist: van roofs are small and often curved. The solar panel angle for vans is usually fixed at whatever the roof pitch allows, which on most vans is very close to flat. Owners compensate by using high-efficiency photovoltaic panel models to maximize watts per square foot, and by parking the van to face south whenever extended charging is needed. For van and boat solar resources, visit our Van & Boat Life Solar Guide.

8. How Solar Panel Angle Affects Output — The Numbers

A solar panel at its optimal solar panel angle can produce 20% to 40% more energy over the course of a year compared to the same panel mounted flat on a horizontal surface. Studies of solar energy production across different tilt angles consistently show a performance peak near the location's latitude value, with output declining as the angle moves away from the optimal in either direction.

The seasonal effect is even more pronounced for best solar panel angle for winter performance. In northern US cities, winter sun is so low on the horizon that a panel tilted at 45 to 50 degrees can capture two or three times more energy than the same panel lying flat. The best solar panel tilt angle for efficiency in winter is always significantly steeper than the summer angle — which is why solar panel tilt adjustment for winter is one of the highest-return maintenance actions available to solar panel owners.

Solar panel watt output is directly tied to how well the panel is aimed at the sun. Two identical 400-watt panels installed on the same roof — one at the optimal angle and one at a suboptimal angle — will produce meaningfully different amounts of electricity over a year. The solar energy output difference between optimal and suboptimal solar panel positioning can easily exceed 10% to 25%, depending on how far off the angle is. For anyone serious about solar power optimization, investing time in getting the solar panel orientation right is one of the most cost-effective decisions they can make. See how this affects your long-term numbers at our Solar Panel Cost 2026 guide.

9. Tools for Finding the Right Solar Panel Angle

Solar Panel Positioning Calculator Online

A solar panel positioning calculator online removes the need to do any manual math. Users enter their address or ZIP code, and the tool instantly returns optimal tilt angles for year-round use, summer, and winter. The best solar panel angle optimization tool tools also provide the recommended panel direction, azimuth adjustments, and sometimes even monthly solar angle adjustment recommendations. The NREL PVWatts Calculator is one of the most trusted free tools available.

DIY Solar Panel Angle Setup

For DIY installers, a DIY solar panel angle setup does not require any special equipment. A simple angle finder or digital level is enough to verify the tilt of a panel. The calculation comes from the formulas above or any solar panel alignment calculator tool, and setting the angle is just a matter of adjusting the mounting brackets until the level reads the target number.

A basic solar panel direction finder — which can be as simple as a compass app on a smartphone — confirms the panel is facing true south. Between the angle measurement tool and the direction finder, a DIY installer has everything needed for a well-optimized solar array tilt. Also see How Many Solar Panels Do You Need? to pair angle optimization with proper system sizing.

Solar Panel Sun Tracking

Solar tracking angle systems take optimization to the next level by mechanically moving panels throughout the day to follow the sun. A solar panel sun tracking guide covers two main types: single-axis trackers that follow the sun from east to west each day, and dual-axis trackers that also adjust for the sun's north-south seasonal movement. Tracking systems can increase annual output by 25% to 40% compared to fixed mounts, though the higher cost and maintenance requirements make them better suited for large commercial installations than typical residential setups.

Solar Roof Pitch Calculator

The solar roof pitch calculator approach is helpful for roof-mounted systems. If the roof pitch is already known, the calculator quickly shows whether the existing slope is close to the optimal angle or whether an adjustable rack is needed — a key step in any well-planned rooftop solar installation. Pair this analysis with our Solar Calculator USA for a nationwide perspective.

10. Solar Panel Angle FAQs

This article is prepared for informational purposes. All angle calculations are based on standard solar geometry formulas. For site-specific recommendations, consult a licensed solar installer. See our Engineering Disclaimer and Privacy Policy for more information.
